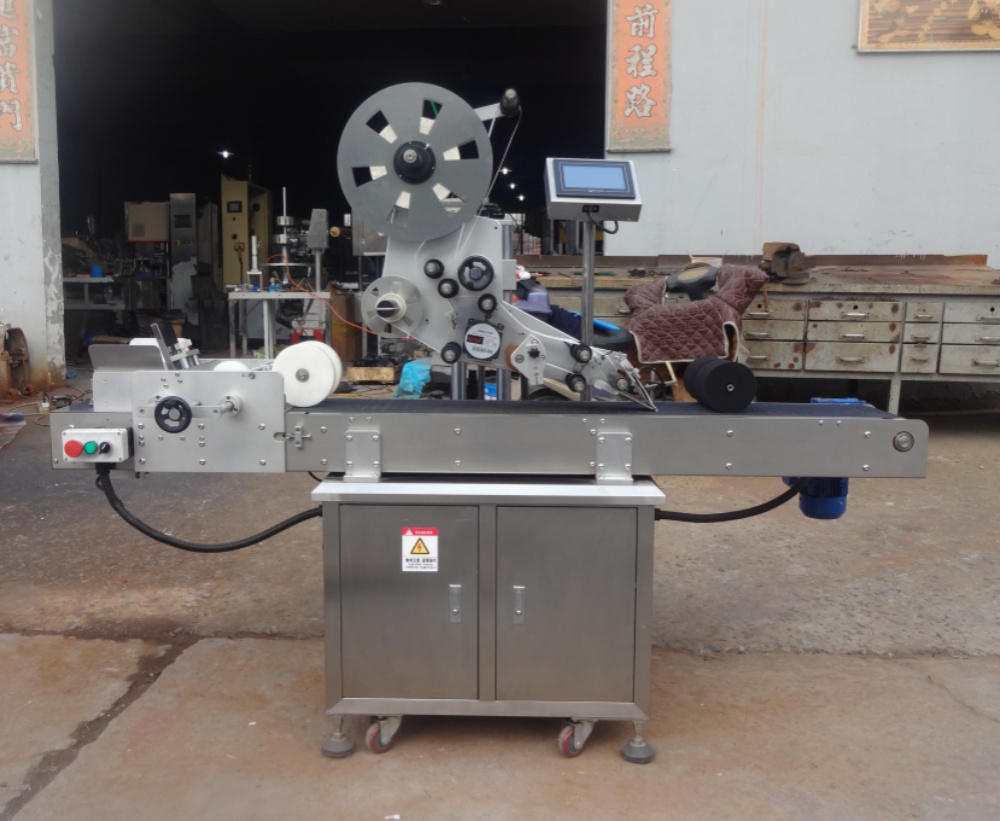

Automatic paging labeling machine

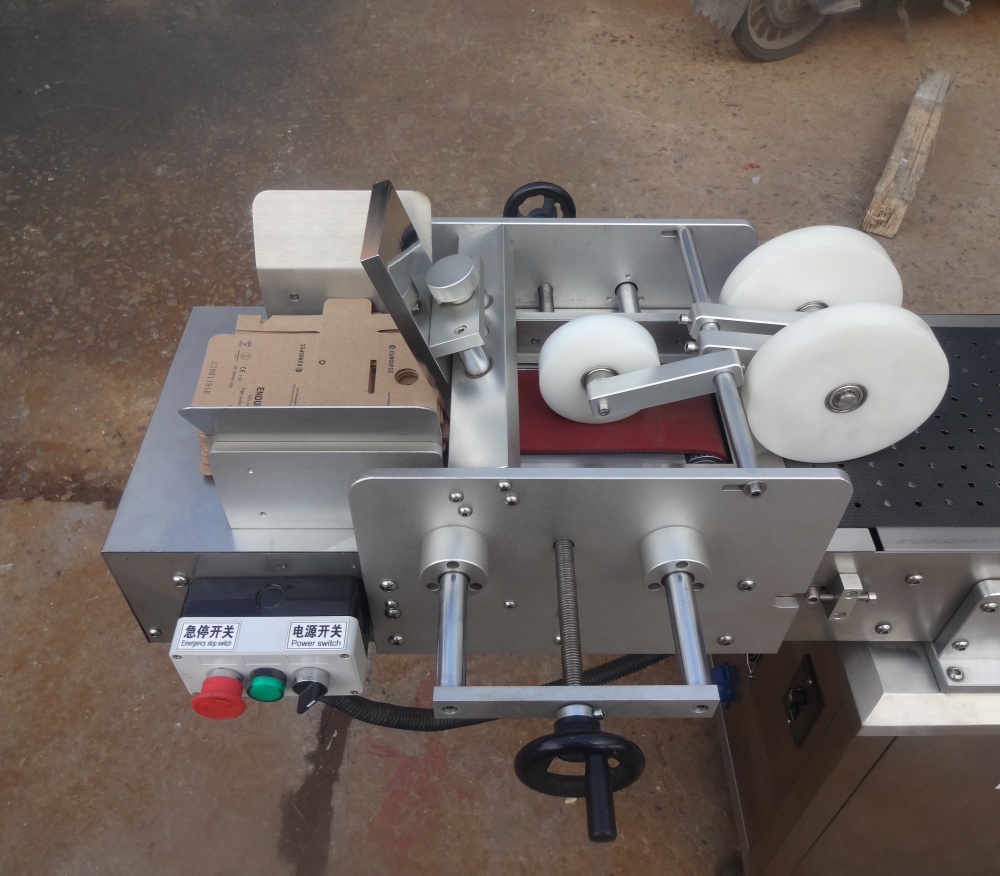

The labeling machine adopt a paging machine, used for small bag, card and folding box labeling.
Automatic paging labeling machine

Product video

Main characteristic

Automatic labeling machine, can be applied to face mask, folded box and other products.Special shapes can be customized consulting manufacturer.

Features
Adopt roller conveyor of horizontal type.Conveying chain tilting be able to achieve stable horizontal labeling.Labeling speed up to 200 bottles/min.Save a lot of man.

Power and resources.
● Adopt flexible bottle separating device and label covering device. Bottle breakage rate under 1 in 100,000.
●Labeling and covering happens simultaneously, high overlapping coefficient of labeling, the label is neat with no bubble ,no wrinkle, improve packing quality .
● The use of the advanced electronic control system with Panasonic PLC + Panasonic touch screen + Panasonic needle electronic eye + German Leuze electronic eye for detecting label supports the equipment to run 7x24 hours.

Intelligent control
● Automatic photoelectric tracking, no labeling without object, automatic correction without label and automatic detection function, can prevent missing label and wasting label.
● All the equipments are mainly made of stainless steel and high grade aluminum alloy.and the whole structure is strong enough, which meets the GMP requirements.
● Has the function of fault alarm, counting function of the production, saving electricity function, setting production quantity and prompting function, setting parameters and protecting function.

Optional function
a)Hot play yards / spurting code function
b)Automatic applicator
c)Automatic collecting function (according to product)

Working principle
Bottle dividing device separate product, put the product to the conveyor belt ,sensor detects the passed product, returned signals to the labeling control system, send out the label by motor of the control system at the right moment, and stick to labeling position of the product, cover label at the same time, sticking two label movement is concluded.

Technical parameters

Applicable Length

of Label

20mm~100mm

Applicable Width

of Label

20mm~130mm

Applicable diameter

of product

φ10mm~30mm

Applicable outside

diameter of label roll

φ280mm

Applicable Inside

diameter of label roll

φ76mm

Accuracy of labeling

±0.5mm

Feeding label speed

Stepper motor:5~19m/min
Servo motor:5~25m/min

Labeling speed

Steppe motor:100~200pcs/min
Servo motor:150~400pcs/min

Conveying speed

450pcs/min

Weight (kg)

about 200kg

Frequency(HZ)

50HZ

Voltage(V)

220V

Power(W)

Stepper motor:1020W
Servo motor:1470W

Equipment external

dimensions

(mm)(L*W*H)

2050mm*650mm*1450mm
